Intended use:

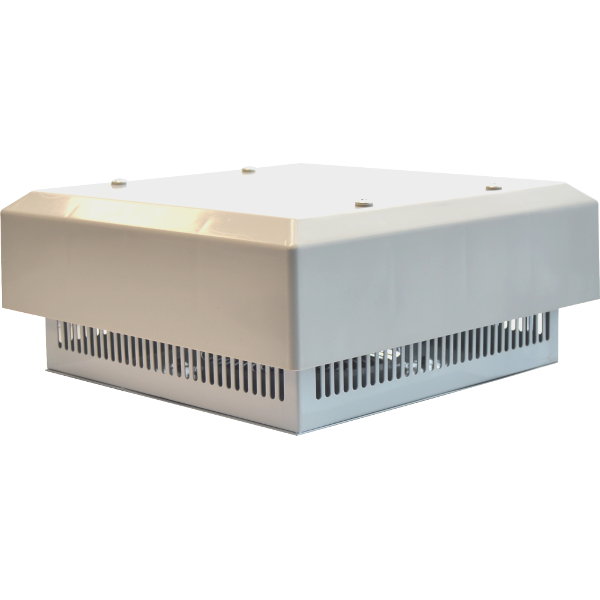

Essima cabinet top fans have been developed specially for the installation on the top of floor-mounted electrical cabinets. They are perfect for those cases when you need high capacity and minimum dimensions in order to save maximum space. The precondition to use these fans is that the ambient temperature should be lower than temperature required in the cabinet.

Design features:

Cabinet top fans refer to high-capacity centrifugal fans. They effectively suck out hot air from a cabinet without inducing too much noise or vibrations. Our fan’s housing is made of steel sheet that provide a good base for the whole construction. A top of the fan is protected with plastic cover. Product range of Essima top fans consists of three models that have the same size but different air flow characteristics. Supply voltage for the products is 230V 50Hz. Distinguishing feature of our cabinet top fans is their low power consumption.

Main features:

  • Low noise level and power consumption.
  • Supply voltage - 230V 50Hz.
  • Maximum air flow – from 570 m3/h to 1200 m3/h.
  • Recommended operating temperature -10°С…+55°С (in ST310E250 up to +60°С).
  • All models have the same standard housing with dimensions 310х310х130 mm.
  • Model range and characteristics

  • Dimensions

Model

Voltage, V/Hz

Current, A

Power, W

Air flow, m³/h

Noise level, dB

Operating temperature, °C

ST310E190

230/50

0,26

58

570

62

-10...+55

ST310E220

230/50

0,38

85

860

73

-10...+55

ST310E250

230/50

0,6

135

1200

69

-10...+60

Essima cabinet top fan dimensions
